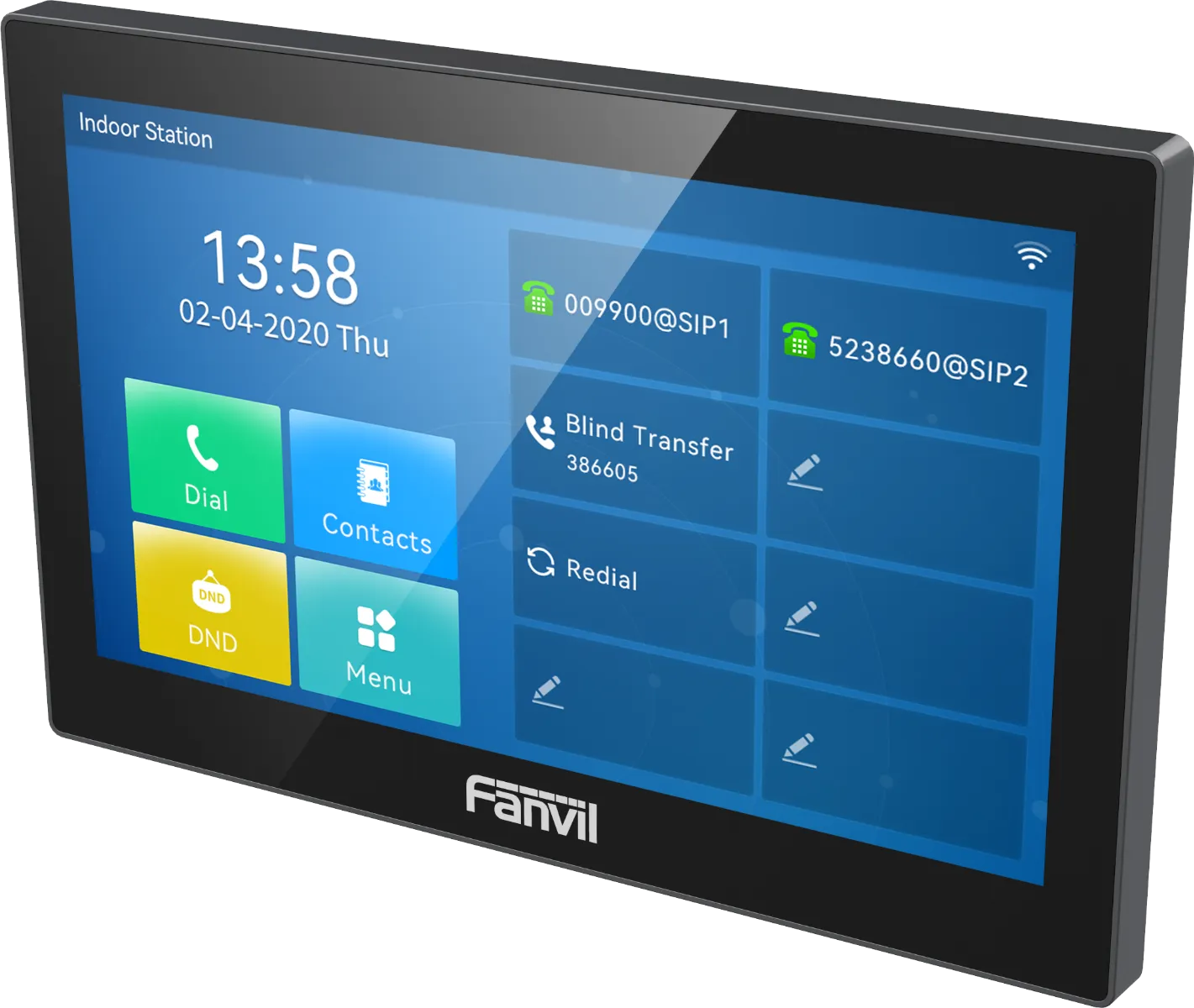

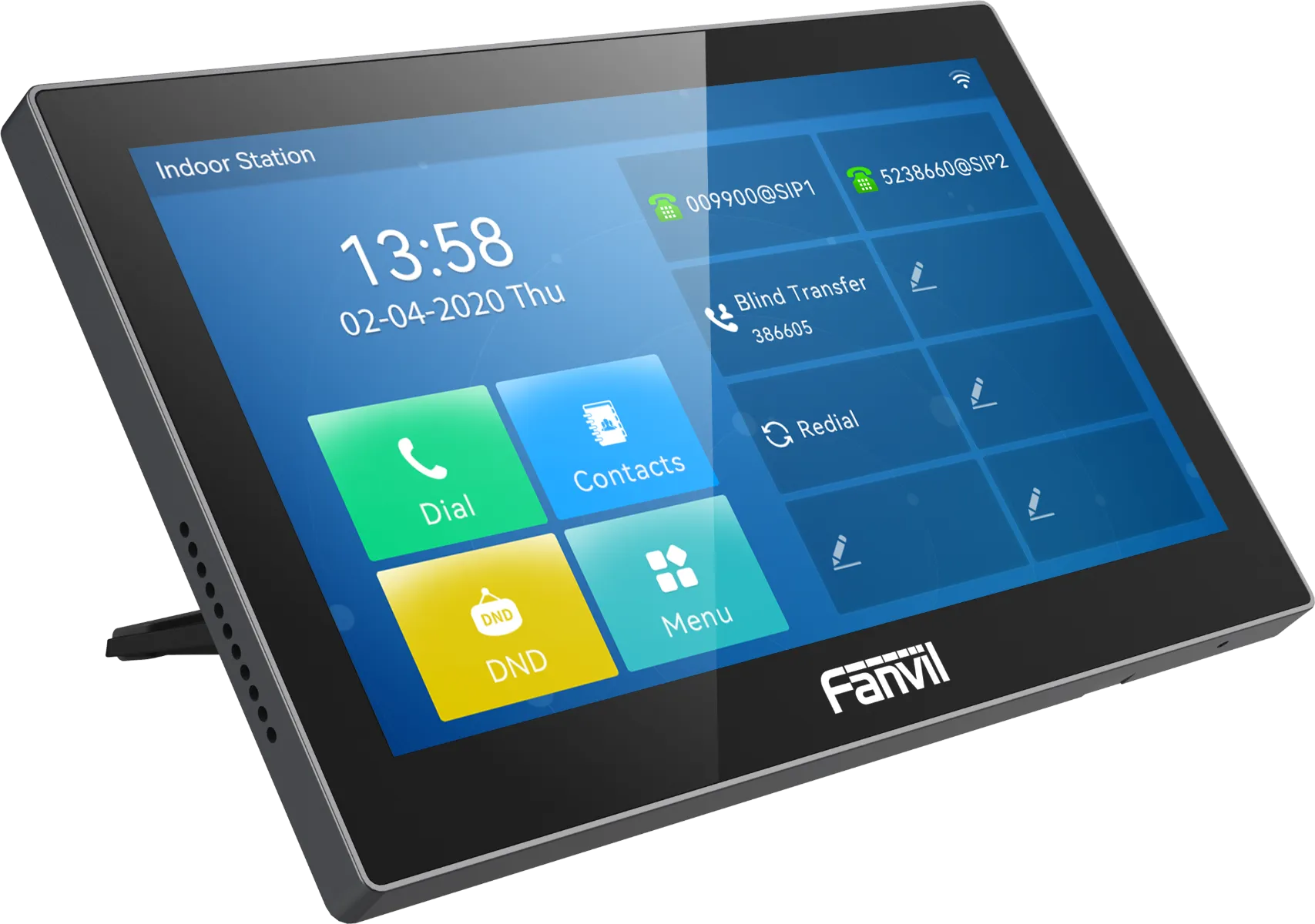

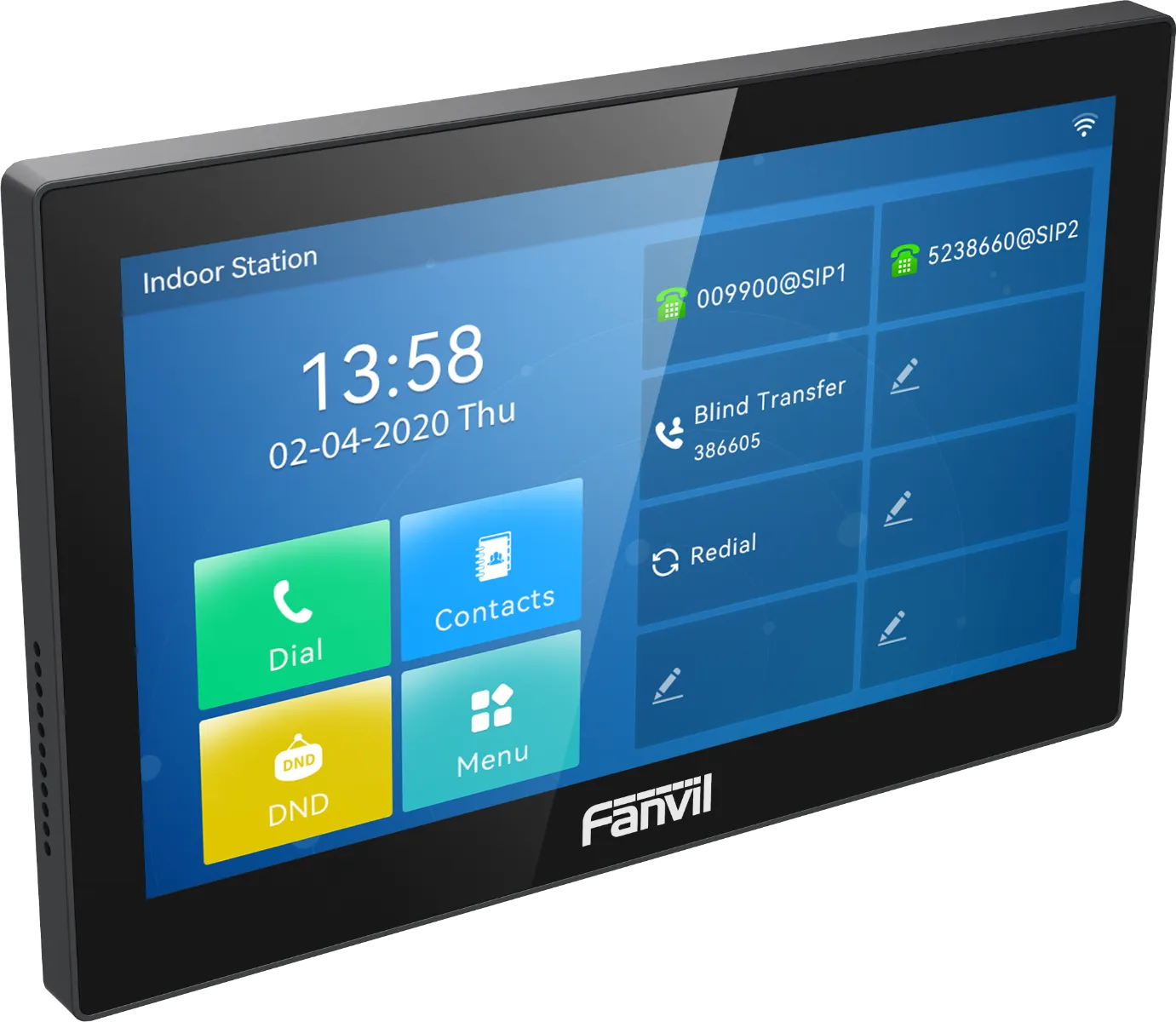

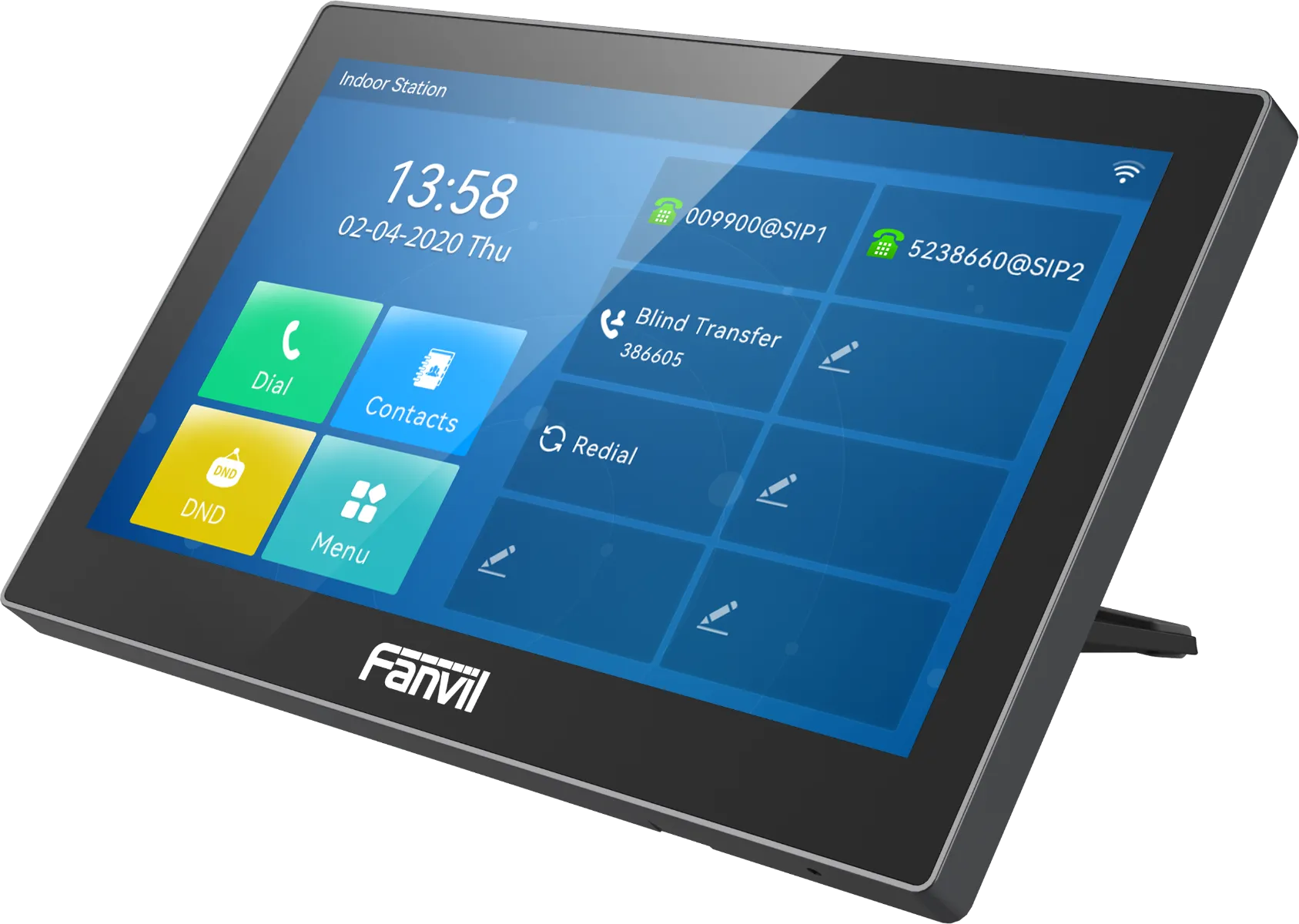

The Fanvil i504W is a modern SIP indoor station with built-in WiFi and a large 7-inch colour touchscreen. This Indoor Station is ideal for people or businesses looking for reliable security of buildings and achieving remote door opening, to achieve a safe and comfortable environment. This device is suitable for residential areas, office buildings and other environments where convenient communication before entry is key.

Key Features

• 7-inch capacitive colour touchscreen
• HD voice speech quality with built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 2.4G/5G Wi-Fi
• 8 alarm inputs and 1 RS485 interfaces
• View the authorized camera image over the video door phone
• Rich interfaces to meet the needs in different application scenarios
• Support online management and upgrade

In the Box

• 1x Fanvil i504W SIP Indoor Station
• 1x wall mount bracket
• Desktop stand (purchased separately)
• 6 pin cable x3
• Screws kit x1
• RJ45 Interface x1
• RS485 Interface x1
• Alarm input interface x8
• Short-out control port x1 (built-in relay)
• Relay: MAX DC30V / 2A, AC125V / 0.5A
• Doorbell short-in detect input x 1
